Hierarchical Predictive Coding for Reconstruction (Rao & Ballard; 1999)
In this exhibit, we create, simulate, and visualize the internally acquired receptive fields of the predictive coding model originally proposed in (Rao & Ballard, 1999) [1].
The model code for this exhibit can be found here.
Setting Up Hierarchical Predictive Coding (HPC) with NGC-Learn
The HPC Model for Reconstruction Tasks
To build an HPC model, you will first need to define all of the components inside of the model. After doing this, you will next wire those components together under a specific configuration, depending on the task. This setup process involves doing the following:
Create neural component: instantiating neuronal unit (with dynamics) components.
Create synaptic component: instantiating synaptic connection components.
Wire components: defining how the components connect and interact with each other.
1: Create the Neural Component(s):
Representation (Response) Neuronal Layers
If we want to build an HPC model, which is a hierarchical neural network, we will need to set up a few neural layers. For predictive coding with real-valued (graded) dynamics, we will want to use the library’s in-built RateCell components (RateCell tutorial).
Since we want a 3-layer network (i.e., an HPC model with three hidden, or “representation”, layers), we need to define three components, each with an n_units size for their respective hidden representations. This is done as follows:
with Context("Circuit") as circuit: ## set up a (simulation) context for HPC model w/ 3 hidden layers
z3 = RateCell("z3", n_units=h3_dim, tau_m=tau_m, act_fx=act_fx, prior=(prior_type, lmbda))
z2 = RateCell("z2", n_units=h2_dim, tau_m=tau_m, act_fx=act_fx, prior=(prior_type, lmbda))
z1 = RateCell("z1", n_units=h1_dim, tau_m=tau_m, act_fx=act_fx, prior=(prior_type, lmbda))
Error Neuronal Layers
For each (RateCell) layer’s activation, we will also want to setup an additional set of neuronal
layers – with the same size as the representation layers – to measure the prediction error(s)
for the sets of individual RateCell components. The error values that this layers will emit will
be later used to calculate the (free) energy for each layer as well as the whole model. This is
specified like so:
e2 = GaussianErrorCell("e2", n_units=h2_dim) ## e2_size == z2_size
e1 = GaussianErrorCell("e1", n_units=h1_dim) ## e1_size == z1_size
e0 = GaussianErrorCell("e0", n_units=in_dim) ## e0_size == z0_size (x size) (stimulus layer)
2: Create the Synaptic Component(s):
Forward Synaptic Connections
To connect the layers of our model to each other, we will need to create synaptic components
(which will project/propagate information across the layers); ultimately, this means we need
to construct the message-passing scheme of our HPC model. In order to send information in a
“forward pass” (from the stimulus/input layer into deeper hidden layers, in a bottom-up stream),
we make use of ForwardSynapse components. Please check out
Brain’s Information Flow for a more detailed explanation of the flow of information that we use in the context
of brain modeling.
Setting up the forward projections/pathway is done like so:
E3 = ForwardSynapse("E3", shape=(h2_dim, h3_dim)) ## pre-layer size (h2) => (h3) post-layer size
E2 = ForwardSynapse("E2", shape=(h1_dim, h2_dim)) ## pre-layer size (h1) => (h2) post-layer size
E1 = ForwardSynapse("E1", shape=(in_dim, h1_dim)) ## pre-layer size (x) => (h1) post-layer size
Backward(s) Synaptic Connections
For each ForwardSynapse component that sends information upward (i.e., the “bottom-up” stream),
there exists a BackwardSynapse component that reverses the flow of information flow by sending
signals back downwards (i.e., the “top-down” stream – from the top layer to the bottom/input ones).
Again, we refer you to this resource Information Flow for more information.
To set up the backwards/message-passing connections, you will write to the following:
W3 = BackwardSynapse("W3",
shape=(h3_dim, h2_dim), ## pre-layer size (h3) => (h2) post-layer size
optim_type=opt_type, ## optimization method (sgd, adam, ...)
weight_init=w3_init, ## W3[t0]: initial values before training at time[t0]
w_bound=w_bound, ## -1 for deactivating the bouding synaptic value
sign_value=-1., ## -1 means M-step solve minimization problem
eta=eta, ## learning-rate (lr)
)
W2 = BackwardSynapse("W2",
shape=(h2_dim, h1_dim), ## pre-layer size (h2) => (h1) post-layer size
optim_type=opt_type, ## Optimizer
weight_init=w2_init, ## W2[t0]
w_bound=w_bound, ## -1: deactivate the bouding
sign_value=-1., ## Minimization
eta=eta, ## lr
)
W1 = BackwardSynapse("W1",
shape=(h1_dim, in_dim), ## pre-layer size (h1) => (x) post-layer size
optim_type=opt_type, ## Optimizer
weight_init=w1_init, ## W1[t0]
w_bound=w_bound, ## -1: deactivate the bouding
sign_value=-1., ## Minimization
eta=eta, ## lr
)
Wiring the Component(s) Together:
The signaling pathway that we will create is in accordance with [1] (Rao and Ballard’s classical model). Error (mismatch signals) is information that goes from the bottom (layer) of the model to its top (layer) in the forward pass(es). Corrected prediction information will come back from the top (layer) to the bottom (layer) in the backward pass(es).
The following code block will set up the top-down projection message-passing pathway:
######### Feedback pathways (Top-down) #########
### Actual neural activations
z2.z >> e2.target ## Layer 2's target is z2's rate-value `z`
z1.z >> e1.target ## Layer 1's target is z1's rate-value `z`
## Note: e0.target will be clamped to input data `x`
### Top-down predictions
z3.zF >> W3.inputs ## pass phi(z3) down W3
W3.outputs >> e2.mu ## prediction `mu` for (layer 2) z2's `z`
z2.zF >> W2.inputs ## pass phi(z2) down W2
W2.outputs >> e1.mu ## prediction `mu` for (layer 1) z1's `z`
z1.zF >> W1.inputs ## pass phi(z1) down W1
W1.outputs >> e0.mu ## prediction `mu` for (input layer) z0=x
### Top-down prediction errors
e1.dtarget >> z1.j_td
e2.dtarget >> z2.j_td
The following code-block will set up the error-feedback, bottom-up message-passing pathway:
######### Forward propagation (Bottom-up) #########
## feedforward the errors via synapses
e2.dmu >> E3.inputs
e1.dmu >> E2.inputs
e0.dmu >> E1.inputs
## Bottom-up modulated errors
E3.outputs >> z3.j
E2.outputs >> z2.j
E1.outputs >> z1.j
Finally, to enable learning, we will need to set up simple 2-term/factor Hebbian rules like so:
########### Hebbian learning ############
### Set up terms for 2-term Hebbian rules
## Pre-synaptic activation (terms)
z3.zF >> W3.pre
z2.zF >> W2.pre
z1.zf >> W1.pre
## Post-synaptic residual error (terms)
e2.dmu >> W3.post
e1.dmu >> W2.post
e0.dmu >> W1.post
Specifying the HPC Model’s Process Dynamics:
The only remaining thing to do for the above model is to specify its core simulation functions
(known in NGC-Learn as MethodProcess mechanisms). For an HPC model, we want to make sure
we define how it’s full message-passing is carried out as well as how learning (synaptic plasticity)
occurs. Ultimately, this will follow the (dynamic) expectation-maximization (E-M) scheme we have
discussed in other model exhibits, e.g., the sparse coding and dictionary learning exhibit.
The method-processes for inference (expectation) and adaptation (maximization) can be written out under your model context as follows:
reset_process = (MethodProcess(name="reset_process") ## reset-to-baseline
>> z3.reset
>> z2.reset
>> z1.reset
>> e2.reset
>> e1.reset
>> e0.reset
>> W3.reset
>> W2.reset
>> W1.reset
>> E3.reset
>> E2.reset
>> E1.reset)
advance_process = (MethodProcess(name="advance_process") ## E-step
>> E1.advance_state
>> E2.advance_state
>> E3.advance_state
>> z3.advance_state
>> z2.advance_state
>> z1.advance_state
>> W3.advance_state
>> W2.advance_state
>> W1.advance_state
>> e2.advance_state
>> e1.advance_state
>> e0.advance_state)
evolve_process = (MethodProcess(name="evolve_process") ## M-step
>> W1.evolve
>> W2.evolve
>> W3.evolve)
Below we show a code-snippet depicting how the HPC model’s ability to process a stimulus input
(or batch of inputs) obs – or observation – is carried out in practice:
######### Process #########
#### reset/set all neuronal components to their resting values / initial conditions
circuit.reset.run()
#### clamp the observation/signal obs to the lowest layer activation
e0.target.set(obs) ## e0 contains the place where our stimulus target goes
#### pin/tie feedback synapses to transpose of forward ones
E1.weights.set(jnp.transpose(W1.weights.value))
E2.weights.set(jnp.transpose(W2.weights.value))
E3.weights.set(jnp.transpose(W3.weights.value))
#### apply the dynamic E-M algorithm on the HPC model given obs
inputs = jnp.array(self.advance_proc.pack_rows(T, t=lambda x: x, dt=dt))
stateManager.state, outputs = self.process.scan(inputs) ## Perform several (T) E-steps
circuit.evolve.run(t=T, dt=1.) ## Perform M-step (scheduled synaptic updates)
#### extract some statistics for downstream analysis
obs_mu = e0.mu.value ## get reconstructed signal
L0 = e0.L.value ## calculate reconstruction loss
free_energy = e0.L.value + e1.L.value + e2.L.value ## F = Sum_l Sum_j [e^l_j]^2
Note that we make use of NGC-Learn’s backend state-manager (ngcsimlib.global_state.StateManager) to
roll-out the T E-steps carried out above efficiently (and effectively using JAX’s scan utilities;
see the NGC-Learn configuration documents, such as the one related to the
global state for more information).
Train the PC model for Reconstructing Image Patches

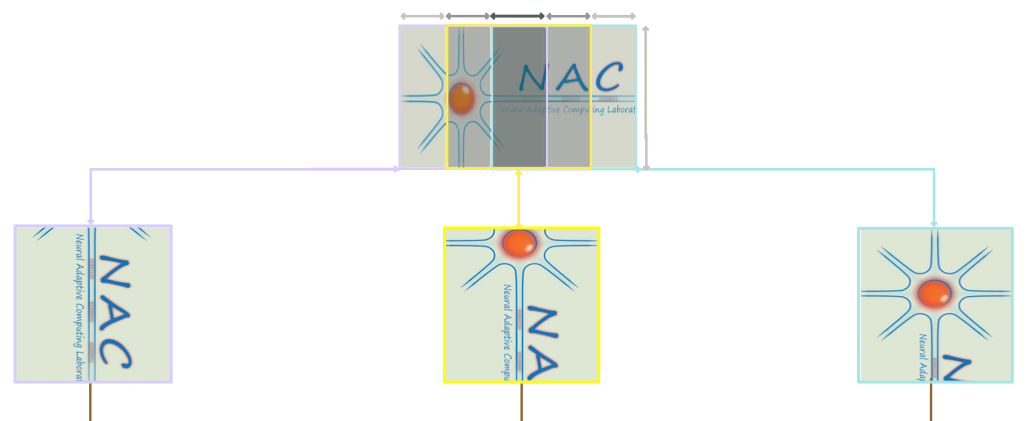

In this scenario, the input image is not the full scene (or complete set of pixels that fully describe an image); instead, the input is locally “patched”, which means that is has been broken down into smaller \(K \times K\) blocks/grids. This input patch exctraction scheme changes the information processing of the neuronal units within the network, i.e., local features are now important. The original model(s) of Rao and Ballard’s 1999 work [1] are also in a patched format, modeling how retinal processing units are localized in nature. Setting up the input stimulus in this manner also results in models that acquire filters (or receptive fields) similar to those acquired in convolutional neural networks (CNNs).
for nb in range(n_batches):
Xb = X[nb * images_per_batch: (nb + 1) * images_per_batch, :] ## shape: (mb_size, 784)
Xb = generate_patch_set(Xb, patch_shape, center=True)
Xmu, Lb = model.process(Xb)
References
[1] Rao, Rajesh PN, and Dana H. Ballard. “Predictive coding in the visual cortex: a functional interpretation of some extra-classical receptive-field effects.” Nature neuroscience 2.1 (1999): 79-87.
